XGN35-12 Box-Type Fixed Metal-Enclosed Switchgear
From3.6–12 kV, 630–4000A. Ultra-compact model. Factory-tested, project-configured, and delivered with full technical documentation. Gas-tight enclosure reduces SF6 leakage risk.
3.6, 7.2, 12Kv
Rated Voltage
Max 4000A
Rated Current
Max 50KA
Short-circuit Current
IEC62271-200
Industrial Standard
Configuration
OEM Customizable
FAT Test
Delivery Standard
Key Technical Data for Project Configuration
The following table is only a framework for critical performance data for fast project evaluation. The standard configuration range is not a universal promise.Technical Data Overview
X | G | N | 35 | 12 |
|---|---|---|---|---|
Box-type | Fixed | Indoor | Design sequence number | Rated voltage (KV) |
| Parameter | Unit | Value | ||
|---|---|---|---|---|
| Rated Voltage | KV | 3.6, 7.2, 12 | ||
| Rated Frequency | Hz | 50 | ||
| Rated Insulation Level | 1 min Power Frequency Withstand Voltage Rated | Phase-to-Phase Gap | KV | 42 |
| Phase-to-Earth Gap | KV | 49 | ||
| Lightning Impulse Withstand Voltage (Peak) | Phase-to-Phase Gap | KV | 75 | |
| Phase-to-Earth Gap | KV | 85 | ||
| Main Busbar Rated Current | A | 630, 1250, 1600, 2000, 2500, 3150, 4000 | ||
| Branch Bar Rated Current | A | 630, 1250, 1600, 2000, 2500, 3150, 4000 | ||
| Rated Short-time Withstand Current (4s) | KA | 20, 25, 31.5, 40, 50 | ||
| Rated Withstand Current (Peak Value) | KA | 50, 63, 80, 100, 125 | ||
| Rated Short-Circuit Breaking Current | KA | 20, 25, 31.5, 40, 50 | ||
| Rated Short-Circuit Making Current(Peak Value) | KA | 50, 63, 80, 100, 125 | ||
| Protection (IP)Rating | IP2X (Minimum Customisation Requirement) | |||
Switchgear Types & Voltage Range
Switchgear Type | Voltage Range | Common Application |
|---|---|---|
Low Voltage (LV) | Up to 1 KV AC | Buildings, factories, data centres |
Medium Voltage (MV) | 1 kV – 35 kV | Industrial plants, substations, renewable energy plants |
High Voltage (HV) | Above 35 kV | Transmission networks, power plants, substations |
LV, MV and HV Switchgear Technical Comparison
Parameter | LV Switchgear | MV Switchgear | HV Switchgear |
|---|---|---|---|
Voltage Range | Up to 1 kV | 1 kV – 36 kV | Above 36 kV |
Typical Applications | Buildings, Factories | Substations, Industry | Transmission Networks |
Interrupting Medium | Air | Vacuum / SF6 | SF6 / GIS |
Rated Current | Up to 6300 A | Up to 4000 A | Up to 5000 A |
Fault Current Rating | Up to 100 kA | Up to 63 kA | Up to 80 kA |
Installation Type | Indoor | Indoor / Outdoor | Outdoor / GIS |
Protection Complexity | Basic | Medium | Advanced |
Maintenance Requirements | Low | Medium | High |
Capital Cost | Low | Medium | High |
Typical Users | Commercial Facilities | Utilities & Industry | Transmission Operators |
Configure Your Switchgear Around Your System
Cabinet Drawing & Outline Dimensions (mm)
Component selection can be adapted to the electrical specification, protection philosophy, installation environment, and approved vendor requirements of the project.
Incoming Breaker
Selected according to rated current, fault level, and protection requirements.
Copper Busbar
Sized according to current carrying capacity, temperature rise, and short-circuit requirements.
Protection Relay
Protection and monitoring configured according to project requirements.
Metering
Provide voltage, current, power, and energy monitoring options.
Cable Compartment
Cable entry and termination arranged according to site conditions.
XGN35-12 Key Applications & Operating Conditions
The XGN35-12 is a box-type fixed metal-enclosed switchgear for indoor application in three-phase AC 50/60 Hz distribution networks of 3.6–12 kV. It is mounted on a rigid welded frame of angle steel and is the central node in power systems for receiving and distributing electrical power. It can satisfy the operational requirements of various industrial and mining enterprises, substations, and power stations.
Standards Compliance
GB3906 “3~35kV A.C. metal-enclosed switchgear”
IEC 62271-200 ” High-voltage switchgear and controlgear – Part 200: AC metal-enclosed switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV”
Installation & Operating Conditions
Ambient air temperature
- Surrounding air temperature：-15℃~+40℃.
- The average temperature in 24 hours should not exceed 35℃.
Altitude
- The applying altitude should not exceed 1000m.
Atmosphere
- The switchgear shall be installed indoors, free from fire hazard, explosion risk, severe contamination, corrosive chemical gases, and severe vibration. For severe service conditions, the design meets Class Ⅰ severity requirements.
- Earthquake intensity: ≤Magnitude 8.
Humidity
- Relative humidity: the daily average value ≤95%, the monthly average value≤90%.
- Average vapour pressure: the daily average value ≤ 2.2 kPa, the monthly average value ≤ 1.8 kPa.
SSE XGN35-12 Features
Switchgear is typically an enclosed system designed to distribute power safely, often connecting to transformers or motor control centres (MCCs), and may include devices such as variable speed drives or power distribution products. Choosing the correct switchgear involves more than matching voltage ratings.
Switchgear Applications Selection Reference
Application | Recommended Switchgear |
|---|---|
Commercial Buildings | LV Switchgear |
Data Centers | LV Switchgear |
Hospitals | LV Switchgear |
Manufacturing Plants | LV / MV Switchgear |
Mining Operations | MV Switchgear |
Renewable Energy Plants | MV Switchgear |
Utility Distribution Networks | MV Switchgear |
Substations | MV / HV Switchgear |
Transmission Networks | HV Switchgear |
Power Generation Plants | HV Switchgear |
Indoor vs Outdoor Switchgear Selection Reference
Standard | Indoor Switchgear | Outdoor Switchgear |
|---|---|---|
Space Availability | Limited Space | Large Sites |
Environmental Protection | Excellent | Moderate |
Maintenance Access | Moderate | Excellent |
Initial Investment | Higher | Lower |
Urban Projects | Recommended | Less Common |
Utility Substations | Possible | Common |
Environmental Selection Guide
Environment | Recommended Technology |
|---|---|
Industrial Plant | Metal-Clad Switchgear |
Coastal Area | Corrosion-Resistant Switchgear |
Desert Region | Dust-Protected Switchgear |
Urban Substation | GIS Switchgear |
Renewable Energy Plant | Vacuum Switchgear |
High Humidity Area | Sealed GIS Switchgear |
Heavy Pollution Zone | GIS / Metal-Enclosed Switchgear |
Find Your Path
Customer Role | First Question | What Details Should Care About |
|---|---|---|
EPC / System Integrator | Can you meet project drawings, schedule, site standards, and grid-connection requirements? | Project delivery workflow, lead time capability, engineering case studies, scope of delivery, selection parameters, layout drawings, certifications |
Distribution Contractor | Is the supplier reliable and quality consistent? Is it easy to procure, install, commission, and maintain? | Factory capability, quality control, certifications, brand components, configuration limits, installation dimensions, spare parts, manuals, after-sales terms |
Plant Owner / End User | Will it run safely and reduce outage and energy-loss risk? Is it easy to maintain? | Application pain points, reliability data, power quality, maintenance convenience, case studies, warranty, remote monitoring |
Distributor / Reseller | Can you support a stable product line and give technical backup? Do you offer supply continuity, customisation, and regional cooperation? | Product line coverage, regional partner policy, MOQ, OEM/ODM options, spare parts support, technical training, catalog downloads, lead time |
Technical Engineer | Do rated parameters, protection scheme, and configuration match? Does it meet the local grid code and certification requirements? | Voltage/current/IP/short-circuit ratings, single-line diagrams, cabinet configuration, IEC/UL standards, test reports, downloadable data, FAQ |
Configured to Your Project Requirements
Electrical
Mechanical
Components
Documentation
Tips: Final configuration is confirmed according to approved drawings, project requirements, and destination market needs.
Switchgear Projects & Applications
Representative projects of XGN35-12 Box-Type Fixed Metal-Enclosed Switchgear.
Stable and robust power supply for mining and mineral processing operations.
0.4-12Kv
Voltage
~4000A
Current
China
Country
Quarry
Application

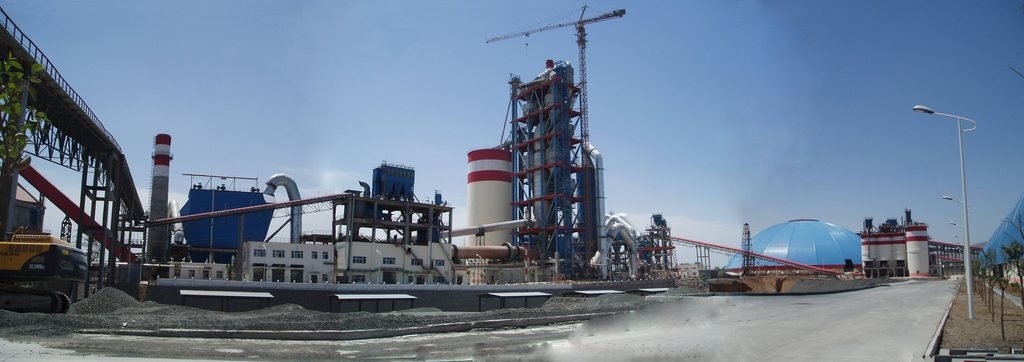

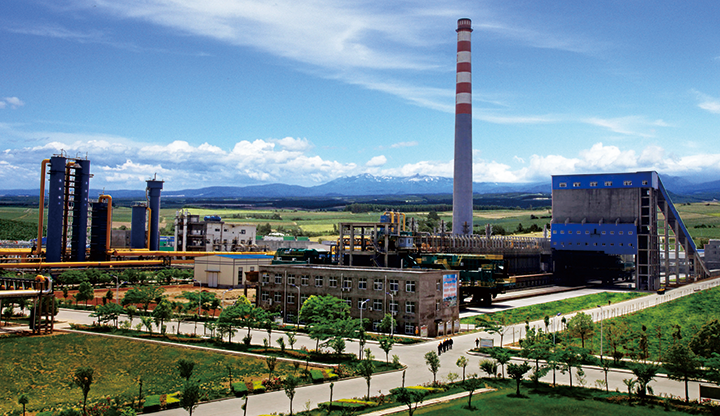

Reliable power control and protection for steel, cement, and chemical industries.
6-35Kv
Voltage
~4000A
Current
China
Country
Industry
Application

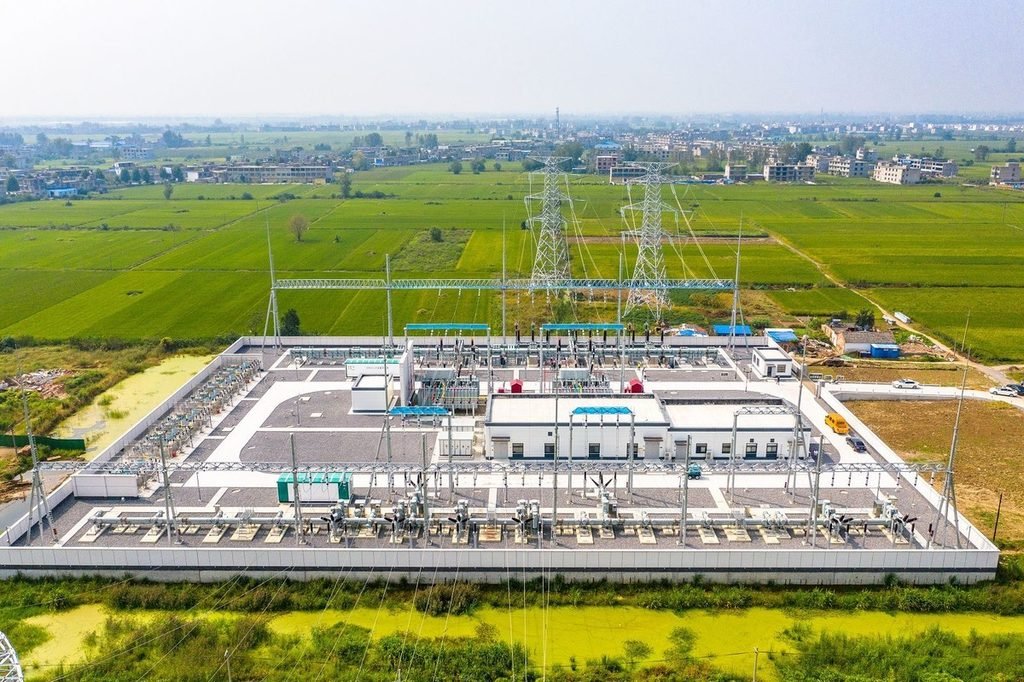

Stable power reception and distribution in power generation plants and substations.
0.4-25Kv
Voltage
~2500A
Current
China
Country
Substations
Application
Quality Control You Can See Before Shipment
Every switchgear cabinet that leaves our facility must pass through a five-stage quality assurance process, from raw materials to final release for shipment.
Verified Components Before They Enter Your Switchgear
All purchased components, such as circuit breakers, transformers, insulators, busbar material, and auxiliary devices, are verified against approved vendor lists and inspected upon receipt.Verifying Certificates & Test Data
Verify the certificates of conformity, type test reports, and factory test data.
Inspecting Structural Parts
Conduct dimensional and visual inspection of busbars, enclosures, and structural parts.
Testing Insulating Materials
Run sampling tests on insulating materials and other components.
Rejecting Non-Conforming Parts
Prevent defective components from entering the production line to safeguard the original reliability.
Precision Assembly That Meets the Drawing
Component assembly must strictly follow standard operating procedures to ensure worker safety while maintaining a clean, dust-free workshop environment.Torquing Every Bolted Connection
Tighten all bolted joints to specified torque values, with each connection point recorded for traceability.
Verifying Clearances & Phase Sequence
Check conductor clearances, creepage distances, and phase sequence against design drawings.
Testing Shutters, Interlocks & Truck Mechanisms
Verify shutters, interlocks, and the truck’s mechanical performance in different positions: service, test, and withdrawn.
Checking Wiring Against Schematics
Check all internal wiring against schematics, including ferrule identification, terminal tightening, and earthing continuity.
Every Panel Proves Safe in Electrical Verification
Before any energization, each panel undergoes a comprehensive program of routine tests in accordance with IEC 60298 and GB 3906.Measuring Main Circuit Resistance
Measure the resistance of the main circuit.
Applying Withstand Voltage Tests
Run a power-frequency withstand voltage test on the main circuit and auxiliary circuits.
Measuring Partial Discharge
Verify misoperation-prevention functions; detect partial discharge where specified.
Testing Relays & Verifying Metering
Test protection relays by secondary injection and verify metering accuracy.
Nothing Ships Only With Approval
The FAT confirms that the switchgear is built in conformity with the approved drawings, the technical specification, and all applicable standards.Repeating Comprehensive Checks
Perform visual and mechanical checks; verify design drawings, test procedures, and technical documents.
Running Key Tests Per Standards
Conduct tests per IEC standards and project specs, including withstand tests, primary/secondary injection tests, and corrosion resistance tests.
Re-Testing Before Release
Record deviations or non-conformities during FAT, take corrective measures, and re-test until all units pass before release.
Preparing Before Shipping
Issue the FAT report and release certificate; clean the cabinet surface.
From Our Factory Floor to Your Site, Intact and On Time
Shipment isn’t simply switchgear dispatched. Every step follows a controlled process covering final verification, export-grade protection, document preparation, and coordinated logistics.Packing for Export
Pack each cabinet in export-grade packaging with moisture proofing and shock absorbers.
Coordinating the Logistics
Manage the entire transport chain —booking, routing, and customs coordination—to ensure on-time delivery to the site.
Documenting Before Dispatch
Photograph and record packaging, loading, and container sealing.
Delivering the Full Dossier
Prepare a complete documentation package for every shipment: routine test reports, FAT protocol, operating manuals, and spare parts list.
